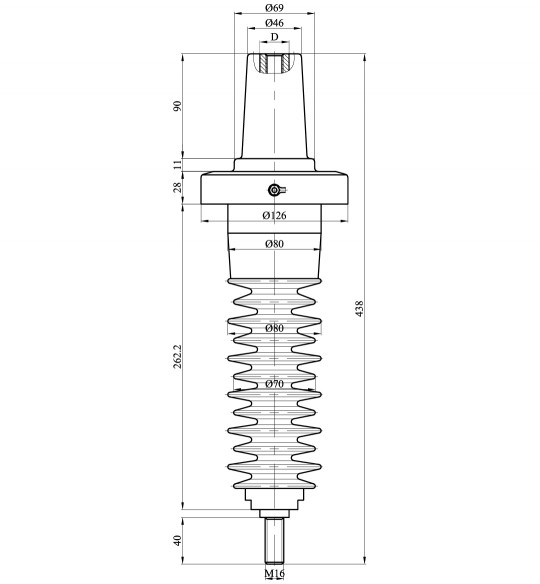

Interface B,C up to 36kV - 630 A
USING FOR
For use in equipment insulated with air, typically for dry type transformers, motors, switchgear...
STANDARDS
The plug in type bushings TK – A36-1/TK-A36-2/TK-A36-3 was product the requirements of IEC TS EN 50180 , IEC TS EN 50181, IEC 60137.
ORDERING INSTRUCTION
To order the equipment bushing, please inform us for type of bushings. The bushings are supplied with an earth cable or an earth plate . This earth connection must be specified when ordering.
DESIGN
• The equipment bushings are moulded epoxy insulated parts in accordance with IEC EN 50180.
TESTING
All type bushings test by TAKFAN's Quality persons as %100 in TAKFAN Laboratory according to IEC 60137 . Rank of tests as a belows;
• Dry power-Frequency voltage withstand test
• Measurement of the partial discharge quantity
• Cantilever load withstand test
• Visual inspection and dimensional check
SHORT CIRCUIT RATINGS
| Product Code | Voltage Ur (kv) | Current lr (A) | D(mm) | Contact Type | Interface |
|---|---|---|---|---|---|
| TK A36 - 1 | 36 | 250 | 250 | Sliding | B |
| TK A36 - 2 | 12-24-36 | 400 | 400 | Sliding | B |
| TK A36 - 3 | 12-24-36 | 630 | 630 | Bolted | C |
