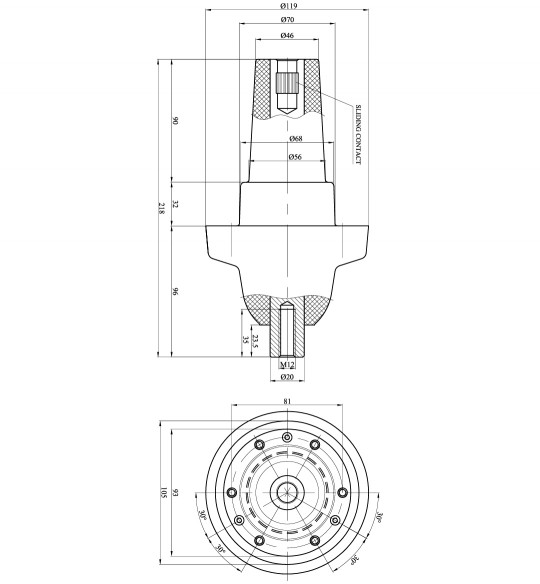

Interface B up to 36kV - 400A
USING FOR
For use in equipment insulated with SF6 gas.
STANDARDS
The plug in type bushings TK – RMU400/TK – RMU250-1 was product the requirements of IEC TS EN 50180 , IEC TS EN 50181, IEC 60137.
ORDERING INSTRUCTION
To order the product bushings, simply specify the type.
DESIGN
• The equipment bushings are moulded epoxy insulated parts in accordance with IEC EN 50180.
• The TK – RMU400/TK – RMU250-1 bushing has a shank outside this standard, adapted for use in SF6 gas.
TESTING
All type bushings test by TAKFAN's Quality persons as %100 in TAKFAN Laboratory according to IEC 60137 . Rank of tests as a belows;
• Dry power-Frequency voltage withstand test
• Measurement of the partial discharge quantity
• Air leakage test (2 bars/min.)
• Cantilever load withstand test.
• Visual inspection and dimensional check
SHORT CIRCUIT RATINGS
| Product Code | Voltage Ur (kV) | Current lr (A) |
|---|---|---|
| TK RMU250 - 1 | 36 | 250 |
| TK RMU400 | 12-24-36 | 400 |
