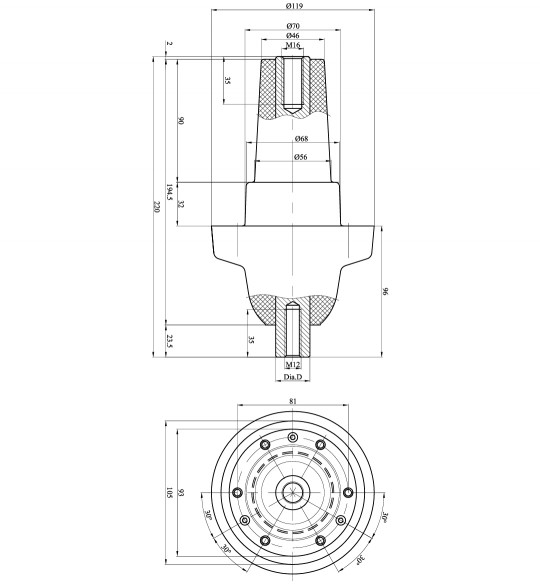

Interface C up to 36kV - 1250 A
USING FOR
For use in equipment insulated with SF6 gas.
STANDARDS
The plug in type bushings TK – RMU630/TK – RMU1250 was product the requirements of IEC TS EN 50180 , IEC TS EN 50181, IEC 60137.
ORDERING INSTRUCTION
To order the product bushings, simply specify the type.
DESIGN
• The equipment bushings are moulded epoxy insulated parts in accordance with IEC EN 50180.
• The TK-RMU630/TK-RMU1250 bushing has a shank outside this standard, adapted for use in SF6 gas.
TESTING
All type bushings test by TAKFAN's Quality persons as %100 in TAKFAN Laboratory according to IEC 60137 . Rank of tests as a belows;
• Dry power-Frequency voltage withstand test
•Measurement of the partial discharge quantity
• Air leakage test (2 bars/min.)
• Cantilever load withstand test.
• Visual inspection and dimensional check
SHORT CIRCUIT RATINGS
| Product Code | Voltage Ur (kV) | Current lr (A) | Dia.D (mm) |
|---|---|---|---|
| TK RMU630 | 12-24-36 | 630 | 25 |
| TK RMU1250 | 12-24-36 | 1250 | 32 |
